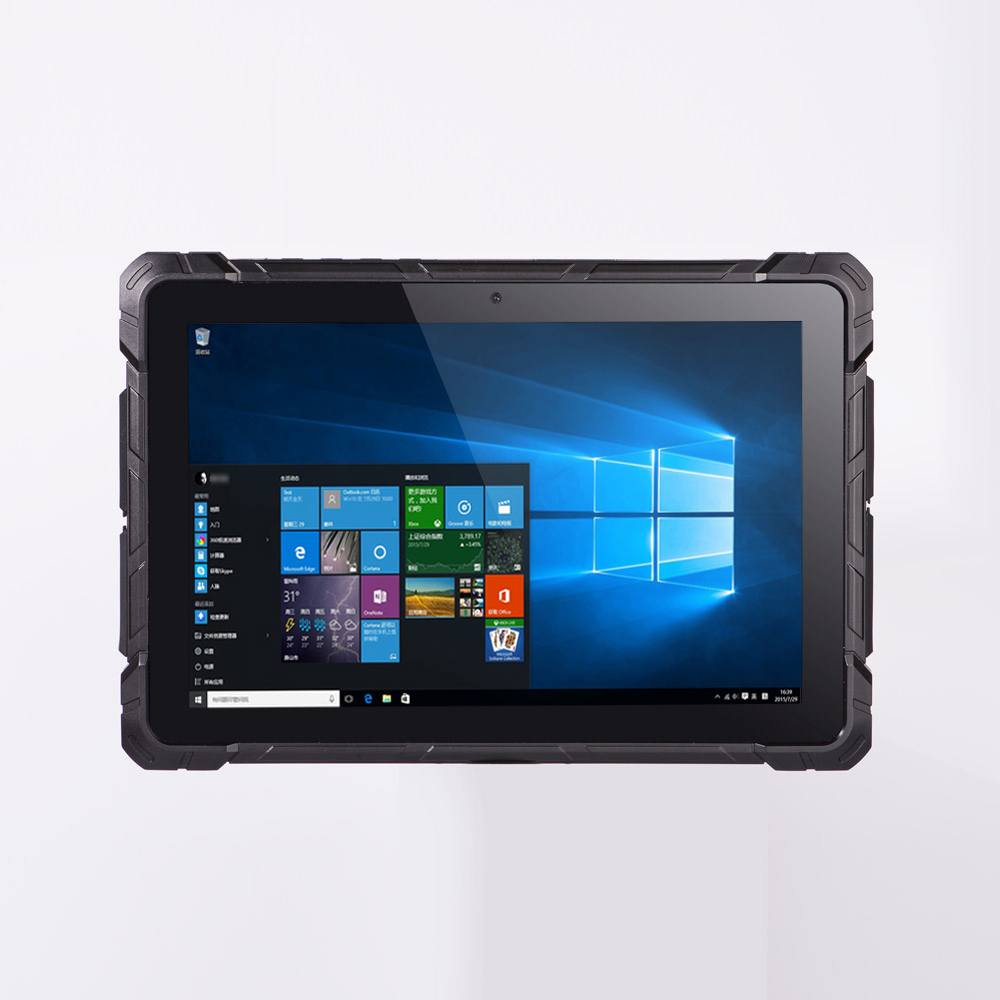

10" Windows Rugged Tablet PC

Hongruitu intelligent 10.1-inch three defense tablet is a 10.1-inch multifunctional military reinforced tablet, which can provide solid protection and high elasticity in various industrial environment

  • Model No: HW-7
  • CPU: Intel Z8350
  • Screen: 10.1" 1920x1200
  • RAM: 4G
  • ROM: 64G
  • OS: win10

Hongruitu intelligent 10.1-inch three defense tablet is a 10.1-inch multifunctional military reinforced tablet, which can provide solid protection and high elasticity in various industrial environments, and can be used in various heavyweight machines and equipment. The design of z8350-f7 extends the service life and enhances the reliability. It can withstand the drop of 1.2m height and soak in 1m deep water without causing damage to the fuselage. Its built-in 12000mah high-capacity battery makes it a necessary computer for real outdoor exploration and special operations. With its various I / O ports and optional integrated barcode reader, it has become a general mobile HMI for logistics and factory automation.

All in One PC,Industrial PC,Industrial Monitor

Key FeaturesIP67, 10.1" IPS + Z8350 + 4GB +64GB + WiFi   2.4G&5G Dual band + 1000Mbps + HDMI1.4 + RS-232(DB9)+ USB3.0
System Physical Standard Configuration:
TypeDetailsDescriptions
Product   FormForm FactorIP67 Rugged Tablet PC
Dimensions280×184×26.5mm
Weight1.2KG
LCDScreen Size10.1"
Screen Resolution1200×1920 (IPS+FHD+300ANSI)    (Standrd)
800×1280 (IPS+HD+500ANSI)  (Optional, For MOQ order)
TPTouch Module G+G Multi-Touch
Battery TypeRechargeable lithium polymer
Capacity12000mAh/3.7V
Working   TimeOver 8 hours (FHD local video display)
System Hardware Configuration:
TypeDetailsDescriptions
CPUTypeIntel Cherry Trail x5-Z8350 Quad-Core
Speed1.44GHz ~ 1.92GHz
GPUTypeIntel HD Graphics Gen8
MemoryCapacity4GB
StorageeMMC64GB
SSD/
SATA   2.5“ HDD/
CameraFront 2M
Rear 5M
SpeakerBuilt-in8Ω/1W with water proof
MicphoneBuilt-inYes
G-sensorBuilt-inYes
Network Connections:
TypeDetailsDescriptions
WIFIWIFI Module: Broadcom   AP6255/AP6256WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
BluetoothBT Module: Broadcom   AP6255/AP6256Bluetooth4.0
3G/4G LTEOptionalOptional with external small PCBA
QR code ScannersOptionalOptional
NFCOptionalOptional
GPSBD2/GPSOptional
FingerprinterCapacitive fingerprint   sensorOptional
Ethernet NetworkRJ-451000Mbps Gigabit Lan
Interface Configuration:
TypeDetailsDescriptions
USB   InterfaceUSB3.0×1pc
USB2.0×2pcs (USB2.0 TypeA×1 + Micro USB2.0×1)
SD / TF Card   readerTF Card reader×1pc (up to 128GB)
SIM  Card SlotSIM Slot for 3G/4G LTEOptional
Audio Jack 3.5mm standard×1pc
HDMIMicro HDMI 1.4×1pc
Video   output through HDMIUp to 4K
COM PortDB9 (RS232)×1pc (External small PCBA)
Button Switch:
TypeDetailsDescriptions
PowerOn/Off×1pc
VolumeDown/UP×1pc
CMOS ResetReset by Short Press/
Main Accessories:
TypeDetailsDescriptions
Power adapterDC 5V/3A×1pc
User's ManualUser's Manual×1pc
Handle StrapsOptionalOptional
Extension DockingUSB2.0×1pc ; DC IN × 1pcOptional
Software Configuration:
 TypeDetailsDescriptions
Wake up on LanWake up on Lan by RJ45/
PXEPreboot Execution   Environment/
Operating   SystemWindows 10Optional
LinuxTest by end user
Environment:
TemperatureOperation Temperature-10oC ~ 55oC (1080p or 4K local   video display)
Storage   Temperature-20oC ~ 70oC  (Restore to Operation Temperature 2hr   before use)
HumidityOprating Humidity35% ~ 80% relative humidity, Non-condensing
Storage   Humidity20% ~ 93% relative humidity, Non-condensing
Certification:
IP67IP67 CertificationYes
OtherOtherOptional
